Reference : 1207

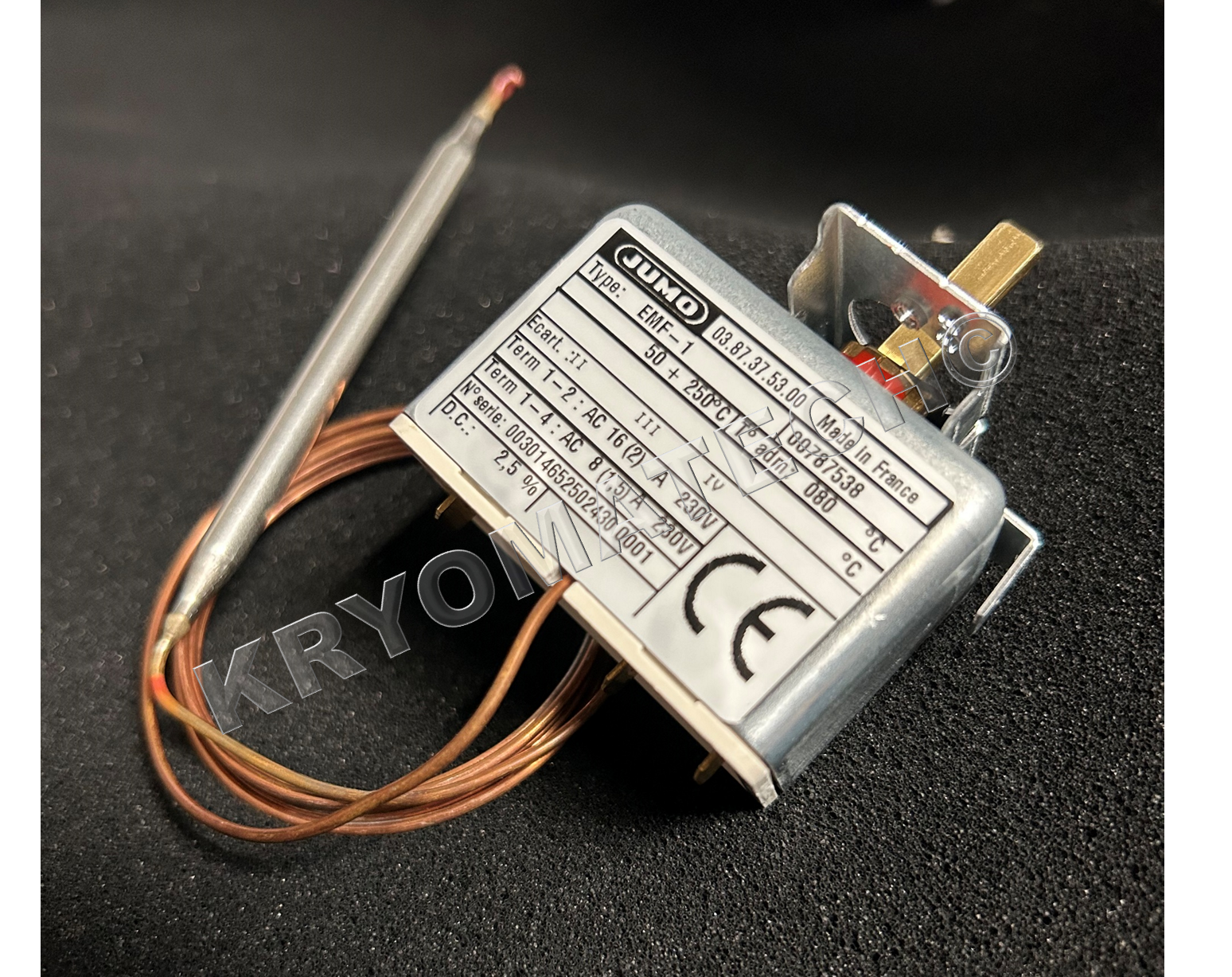

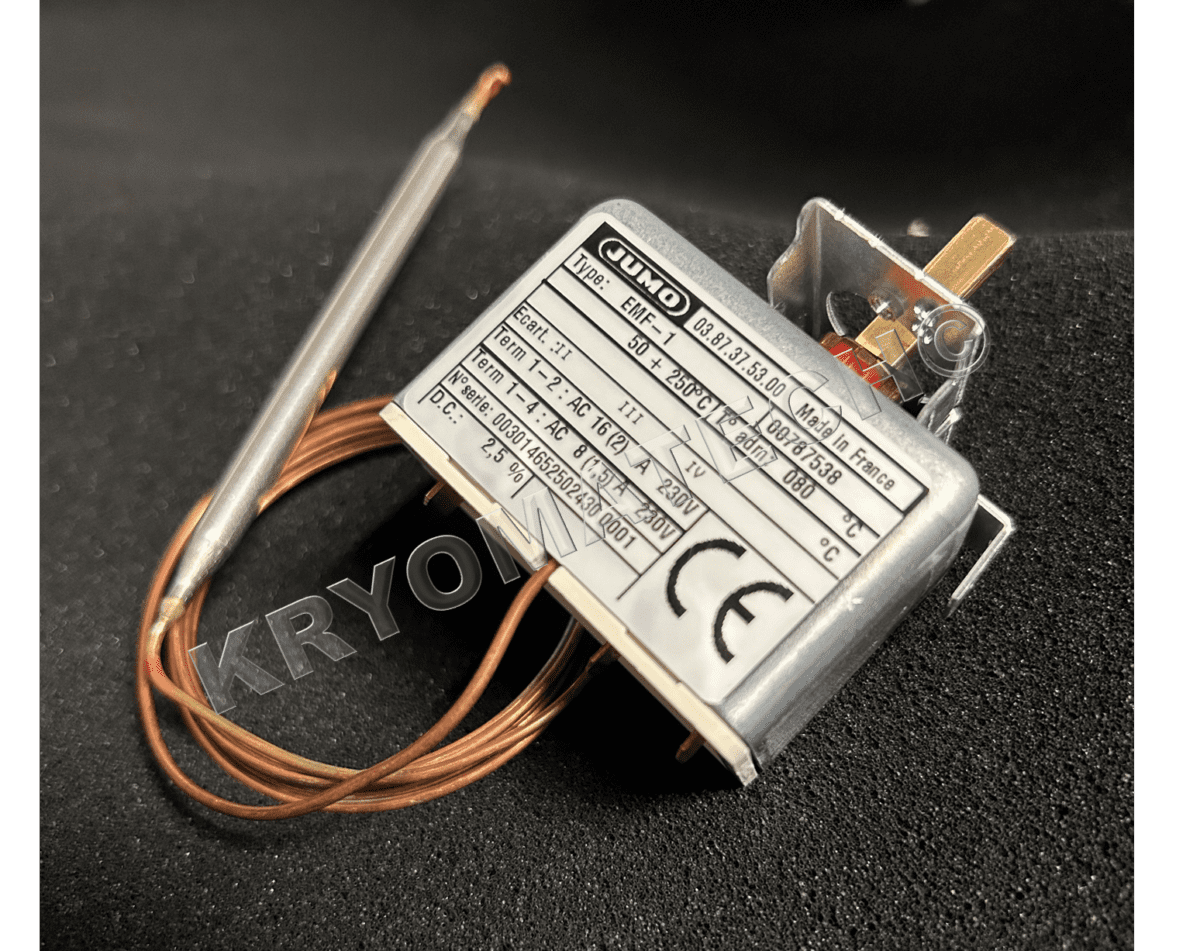

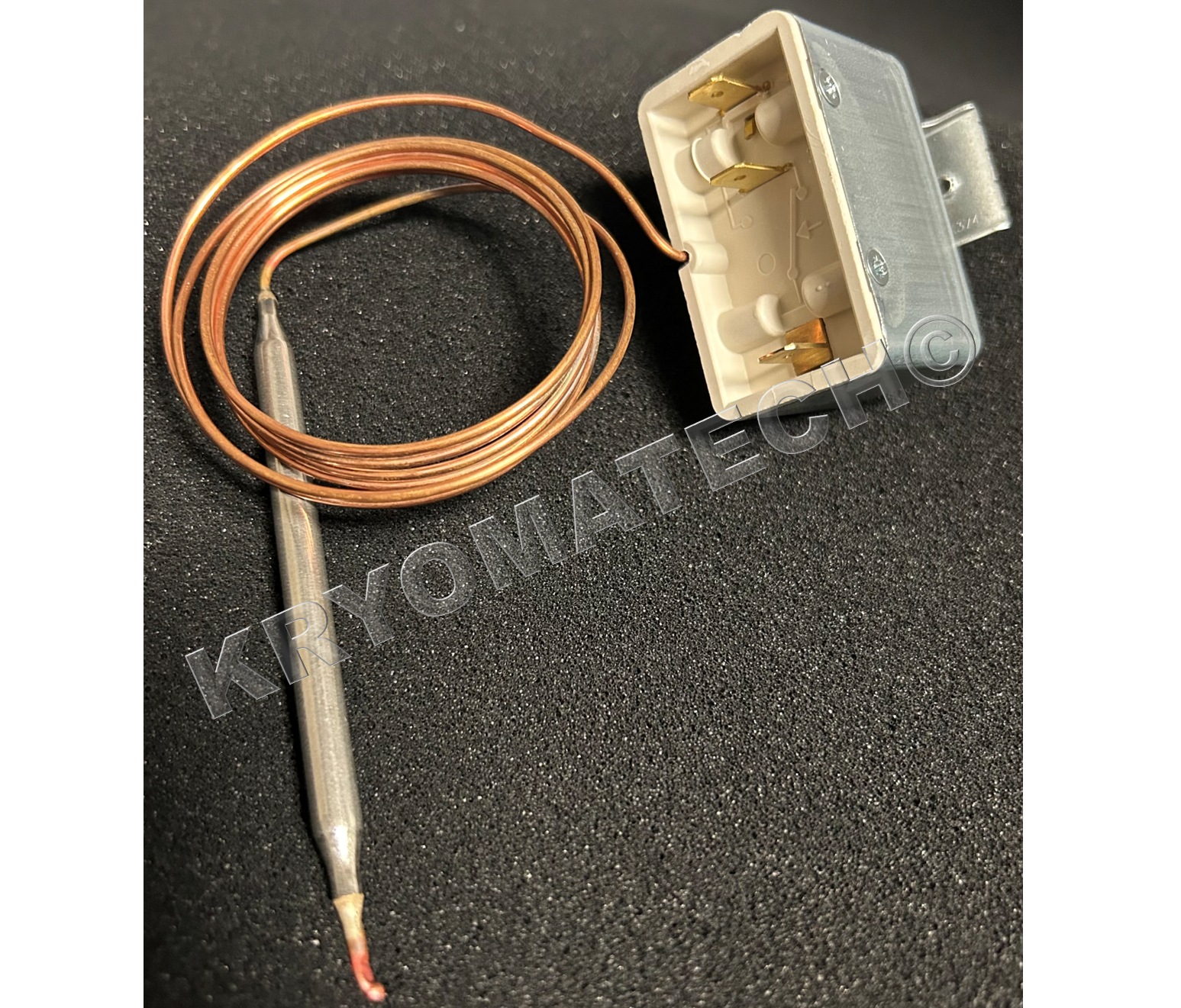

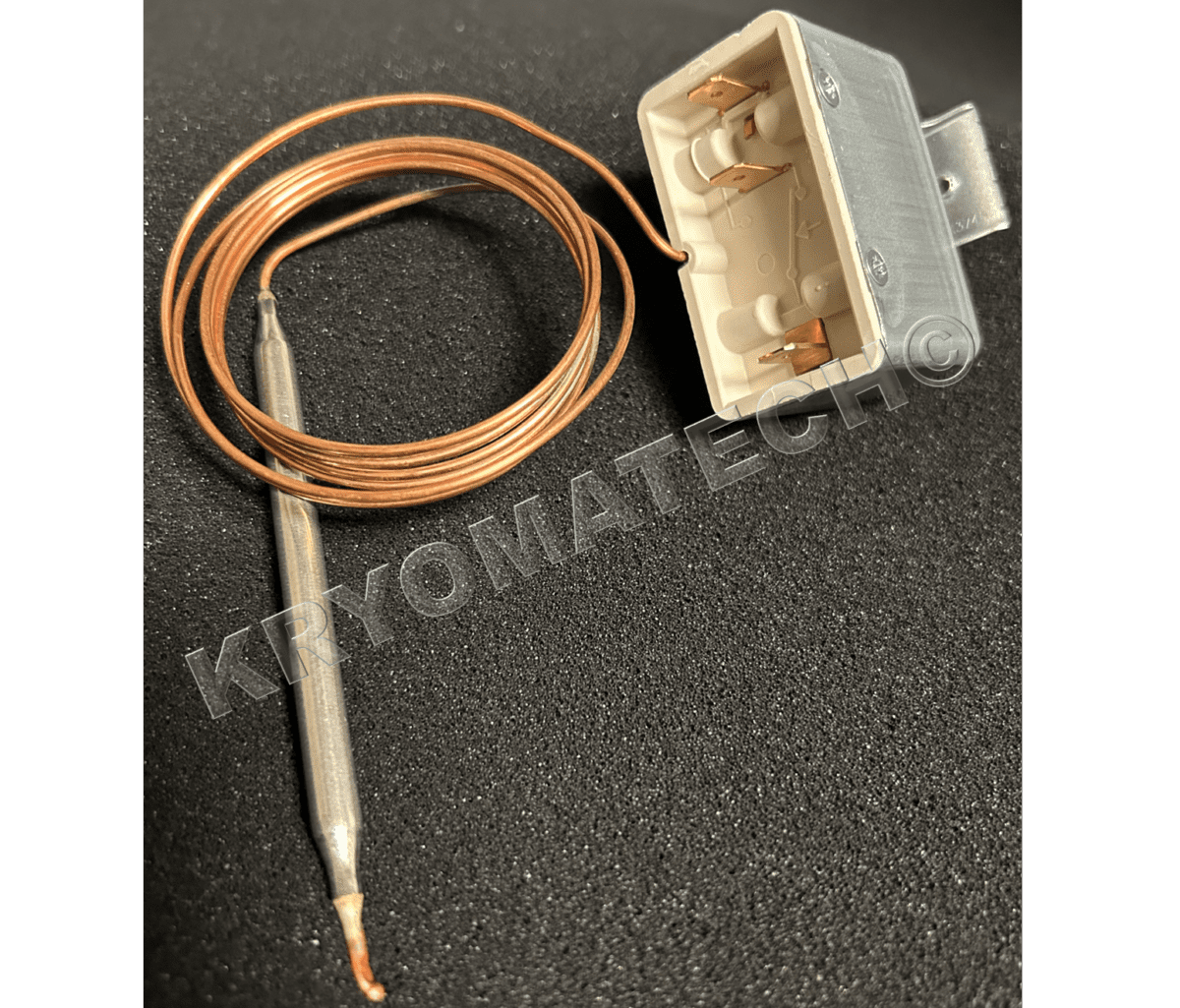

Safety thermostat 50°C-250°C – 1 Contact/3 Connectors – Copper – Length 1M
225,12 € HT – 270,14 € TTC
Panel-mounting temperature thermostats series / Single-pole temperature controller (TR). This range of capillary thermostats controls thermal processes as temperature controllers or temperature limiters, using a microswitch responding to liquid expansion as a switch - Photos non contractuelles. SOLD INDIVIDUALLY.
1 in stock (can be backordered)
Technical data
| Weight | 371 g |
|---|---|
| Dimensions | 250 × 250 × 100 mm |
| Thermostat type | Capillary |
| Operating temperature | 50 to 250°C |
| Composition | Smooth round copper probe, Ø 6mm |
| Hair length | 1 Meter |
| Switching capacity | 16A |
| Contact voltage | 230V |
| Power supply type | AC |
| Execution | 1 single-pole snap-action contact |
| Termination type | 3 Lugs |
| Type of equipment | For Climatic/Thermal Enclosures |
| Thermostat knob | Not supplied |
| Origin | FRANCE |
| Packaging | Sold individually |
Description
Features
0 avis
Description
Features
| Weight | 371 g |
|---|---|
| Dimensions | 250 × 250 × 100 mm |
| Thermostat type | Capillary |
| Operating temperature | 50 to 250°C |
| Composition | Smooth round copper probe, Ø 6mm |
| Hair length | 1 Meter |
| Switching capacity | 16A |
| Contact voltage | 230V |
| Power supply type | AC |
| Execution | 1 single-pole snap-action contact |
| Termination type | 3 Lugs |
| Type of equipment | For Climatic/Thermal Enclosures |
| Thermostat knob | Not supplied |
| Origin | FRANCE |
| Packaging | Sold individually |
